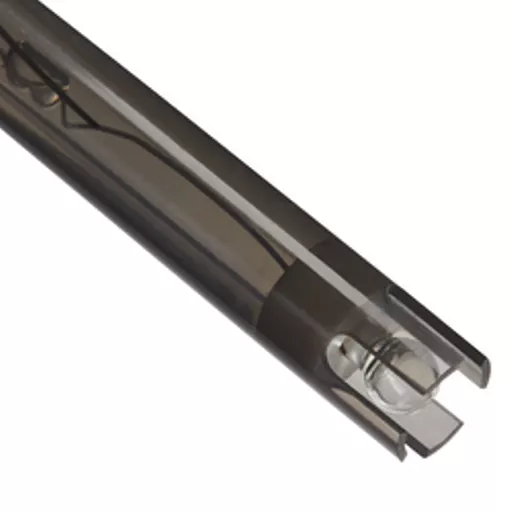

pH Electrodes Single Junction Combination

pH Electrodes Single Junction Combination

Code: F10111261

Out of stock

Average lead time: 25-03-2026

Each

€182.01 ex VAT

delivery text placeholder

delivery text placeholder

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty
Conduct routine, small volume or flat surface pH measurement with Thermo Scientific™ Orion™ economy series pH electrodes. Thermo Scientific™ Orion™ Low Maintenance pH Electrodes provide reliable and accurate measurements of routine samples. 9106BNWP is best suited for field or plant use with general purpose samples, and educational institutes where minimal maintenance is required. 911600 is ideal for samples as small as 0.2mL. 912600 is suited for use with long neck flask. 913600 has a flat sensing bulb good for measurement of flat, soft, moist, semi-solid or small volume samples. Permanently gelled Ag/AgCl electrolyte 9106BNWP has 0 to 14 pH range; all others have , 0 to 12 pH range 0° to 80°C (32° to 176°F) temperature range General purpose and flat surface models: 4.31″ long (11cm) × 0.43″ diameter (12mm) body, 0.62″ diameter (16mm) cap Semimicro Model: 5.93″ long (15cm) × 0.25″ diameter (6mm) body, 0.18″ diameter (10mm) cap 91-06 Model: Waterproof BNC connector General Purpose, Flask, Semimicro and Flat Surface Models: BNC connector

KeyValue
DescriptionPermanently gelled Ag/AgCl electrolyte
Connector TypesBNC (Waterproof)
JunctionWick
MaterialEpoxy
pH Range0 to 14
Temperature (Metric) Operating0°C to 80°C
TypeCombination pH Electrode
For Use With (Equipment)Orion pH Meter
Reference ElectrolyteAg/AgCl
Temperature (English) Operating32°F to 176°F
Tip TypeStandard
Length (English)4.31 in.
Length (English) Cable39.4 in.
Length (Metric)11 cm
Length (Metric) Cable1 m
Diameter (English) Body0.43 in.
Diameter (English) Cap0.62 in.
Diameter (Metric) Body12 mm
Diameter (Metric) Cap16 mm
RefillableNon-refillable


Titratable Acidity of Red Wine by Manual Titration (Potentiometric)
Measuring pH in Wine and Juice
Measuring pH of Concentrated Samples
Measuring pH in Low Ionic Strength Solutions
Low Maintenance Gel-Filled pH Electrodes
