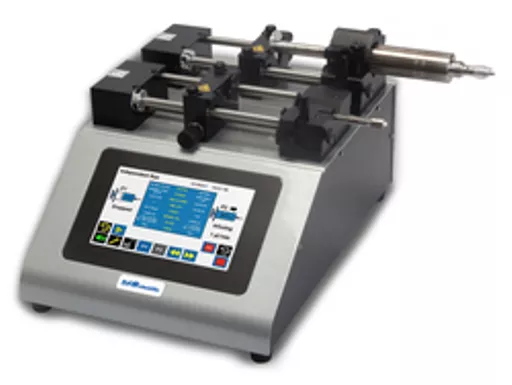

Syringe Pump, Gemini 88 Plus Dual Rate, KD Scientific

Syringe Pump, Gemini 88 Plus Dual Rate, KD Scientific

Code: F15732825

Out of stock

Average lead time: 01-01-0001

Each

€8,491.06 ex VAT

delivery text placeholder

delivery text placeholder

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty
Dual rate infusion/withdrawal pump Two separate syringe pumps in one instrumentLarge touch screen display allows quick and easy setupHigh or low pressure operationCompatible with wide variety of syringesContinuous fluid deliveryTTL, USB, RS-232 communicationThree independent operating conditionSyringe:Size: 0.5μL (0.103mm minimum inner diameter), 60mL (32.573mm maximum inner diameter)Flow Rate:Minimum: 1.02mL/min (0.5μL syringe, 0.103mm inner diameter)Maximum: 106mL/min (60mL syringe, 32.573mm diameter)Connectors:USB: Type BRS-232: 9-pin D-Sub connectorRS-485: IEEE-1394, 6 positions for pump-pump communicationTTL Input/Output: Two 15-pin D-sub connectors, one for reach pump mechanismFootswitch: Two phonojack inputs, one for each pump mechanism

KeyValue
ModelGemini 88 Plμs
Voltage100/240 V
Flow Rate1.02 pL/min. (0.5 μL syringe), 106 mL/min. (60 mL syringe)
Certifications/ComplianceCE
ConnectorsType B USB
Linear Force (Metric)31.75 kg, 22.6 kg (at 100% force setting (60 mL syringe))
MaterialGlass, Plastic, Stainless Steel (Syringe)
Reproducibility±0.05%
TypeDual Rate Syringe Pump
Weight (Metric)9.09 kg
Electrical Requirements100/240 V 50/60 Hz 66 A
Display TypeTouchscreen
Flow Rate Accuracy±0.25%
Number of Channels2
Overall Height (Metric)21 cm
Overall Length (Metric)28 cm

Looking for a Safety Data Sheet (SDS) or Technical Data Sheet (TDS)?
